Ultron Systems, Inc. -- Die-Matrix Expanders

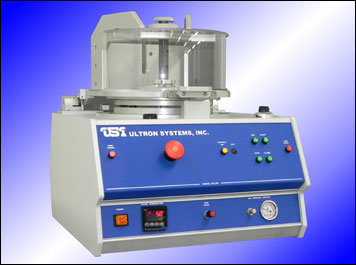

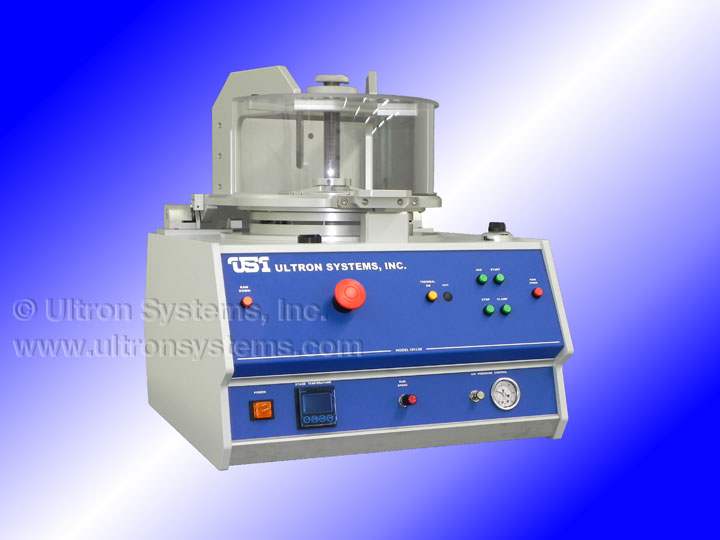

Model UH130 Series: (UH130, UH130-12) - Pneumatic

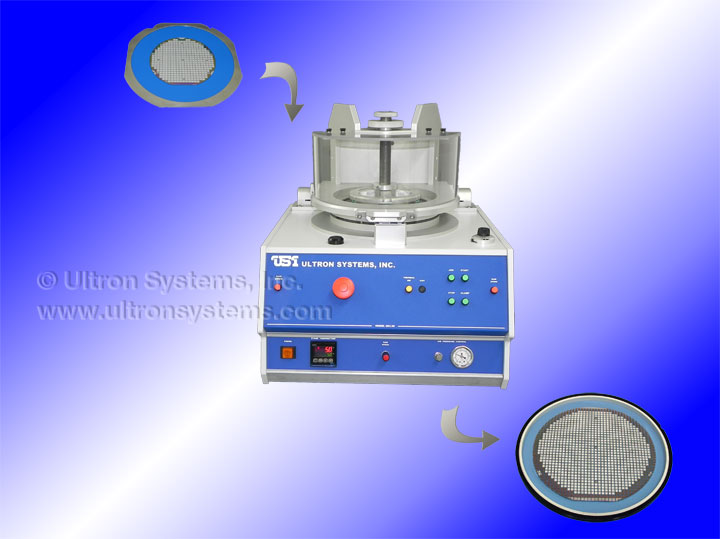

Ultron Systems' Model UH130 Die Matrix Expander defines the standard in die presentation through precise control of die separation process parameters. Better die presentation results in higher throughput and increased yield. The UH130 series facilitates this by maintaining die orientation and consistent die spacing. Our Die Matrix Expander incorporates 1) Flexiblity in both accommodation and adjustability, 2) Accuracy and precision for repeatable results, and 3) Simplicity in operation. Die separation distance is precisely controlled.

FEATURES:

- Accommodates up to 8" (200mm) wafers/film frames (Model UH130) and 12" (300mm) wafers/film frames (Model UH130-12)

- Pneumatic ram with speed control and 2.3" adjustable stroke (ram height)

- Motorized circular cutter assembly (Standard on Model UH130-12; Option on Model UH130)

- Emergency stop with manual clamp

- Digital temperature-controlled heated stage with thermistor

- Adjustable stroke stop, resulting in consistent repeatability of expansion

- Plexiglass shroud, anti-static

- Die separation distance precisely controlled for consistent repeatability

- Alignment pins provide easy and precise film frame placement

- Reduced alignment times and increased yield from automated processes

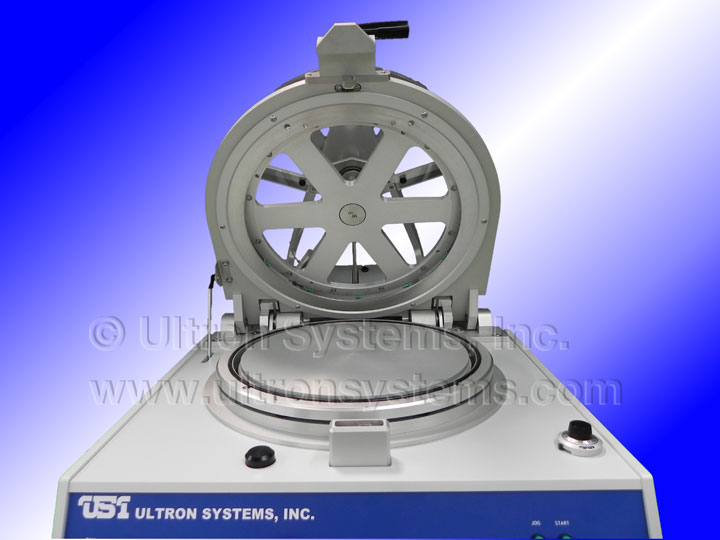

- Lower clamp (outer grip ring) assembly & upper clamp (inner grip ring) assembly can hinge separately to allow use of larger grip rings (UH130-12)

- Convenient: Tabletop design, easy to operate

- Operator variables virtually eliminated

OPTIONS:

- Motorized Circular Cutter Assembly (Model UH130)

- Grip Ring Adapter for various wafer / grip ring sizes

- 'CE' Certification

*** REQUEST FURTHER DETAILED INFORMATION

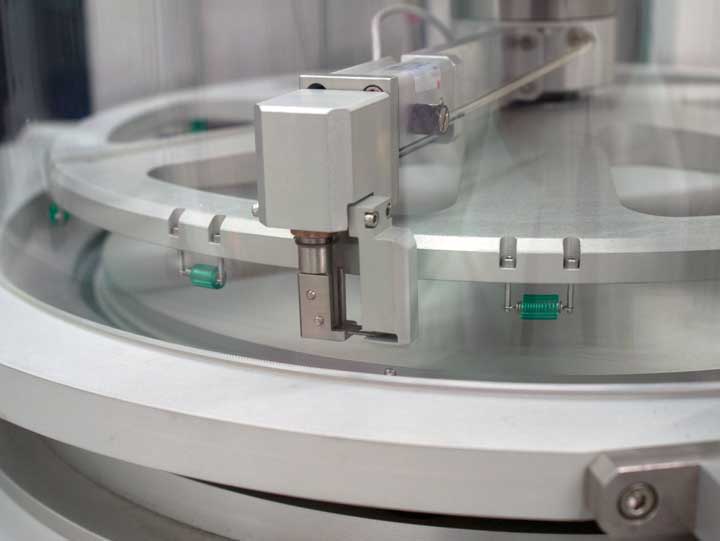

Motorized Cutting Mechanism option shown

PRODUCTS:

DIE-MATRIX EXPANDERS

FEATURES	UH130 SERIES	UH132 SERIES
- Accommodates up to 8" (200mm) wafers/film frames (Models UH130, UH132) and 12" (300mm) wafers/film frames (Models UH130-12, UH132-12)	X	X
- Pneumatic ram, with speed control and adjustable 2.3" adjustable stroke (ram height)	X
- Motor driven ram, with digital speed control and 2.8" adjustable stroke (ram height)		X
- Digital temperature-controlled heated stage	X	X
- Thermistor for temperature-controlled heated stage	X	X
- Adjustable stroke stop, resulting in consistent repeatability of expansion	X	X
- Exact height adjustment by 10-turn dial indicator (1:1 ratio)	X	X
- Up to 9 programs for adjustable pre-heat time (up to 99 seconds) & ram speed (10 speed settings)		X
- Safety over-pressure sensor and slip clutch for ram stop	X	X
- Motorized circular cutter assembly	OPTION: UH130 STD: UH130-12	OPTION: UH132 STD: UH132-12
- Emergency stop button	X	X
- Upper & lower clamp assembly	X	X
- Lower clamp (outer grip ring) assembly & upper clamp (inner grip ring) assembly can hinge separately to allow use of larger grip rings (Models UH130-12, UH132-12)	X	X
- Alignment pins provide easy and precise film frame placement	X	X
- Plexiglass shroud, anti-static	X	X
- Grip ring adapter for various wafer / grip ring sizes	OPTION	OPTION
- Die separation distance precisely controlled for consistent repeatability	X	X
- Operator variables virtually eliminated	X	X
- Reduced alignment times and increased yield from automated processes	X	X
- 'CE' certification	OPTION	OPTION

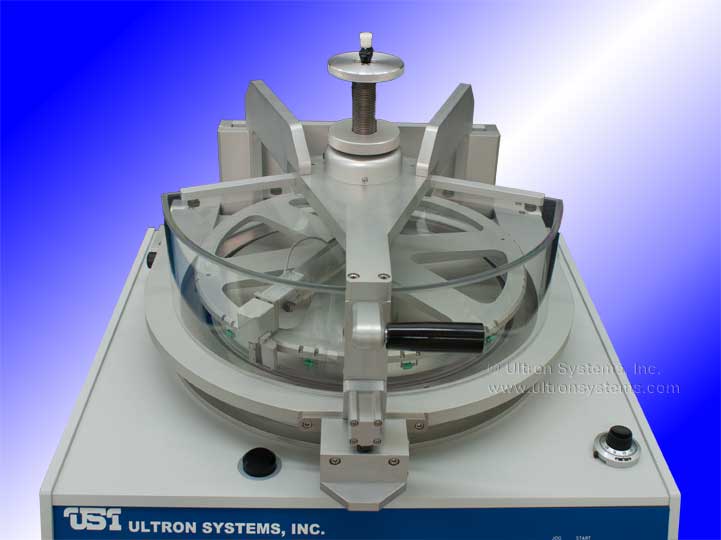

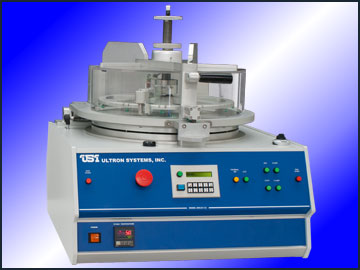

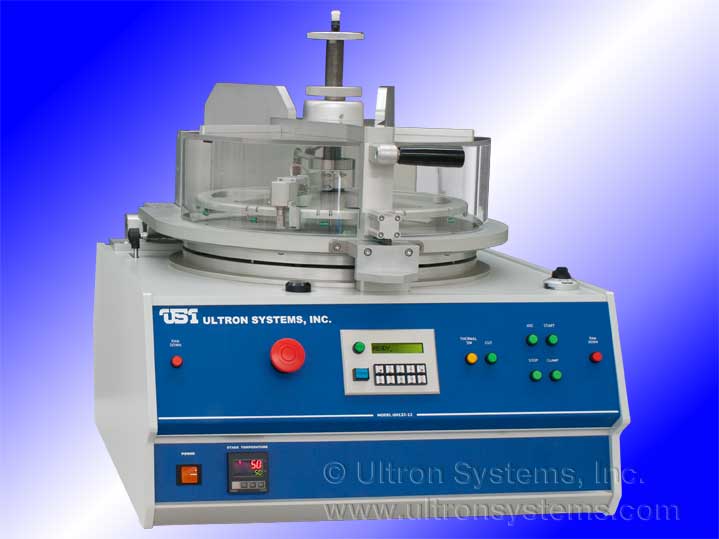

Model UH132 Series: (UH132, UH132-12) - Motor Drive

Ultron Systems' Model UH132 Series Motor Drive Die Matrix Expanders set another higher standard in precision wafer expansion and die presentation. Based on the highly popular UH130 Series, the new UH132 sibling continues to offer precise control of die separation process parameters, but now incorporates a new motor drive design with digital speed control that offers even greater precision to wafer expansion by producing both linear and uniform expansion throughout the entire drive stroke. A new programmability feature of the UH132 Series allows pre-heat (dwell) time and ram speed to both be saved, providing total control and maximum accuracy and precision for consistent, repeatable results. Die separation distance is precisely controlled with the Model UH132 Series.

FEATURES:

- Accommodates up to 8" (200mm) wafers/film frames (Model UH132) and 12" (300mm) wafers/film frames (Model UH132-12)

- Motor driven ram with digital speed control and 2.8" adjustable stroke (ram height)

- Motorized circular cutter assembly (Standard on Model UH132-12; Option on Model UH132)

- Digital temperature-controlled heated stage with thermistor

- Adjustable stroke stop, resulting in consistent repeatability of expansion

- Die separation distance precisely controlled for consistent repeatability

- Exact height adjustment by 10-turn dial indicator (one-to-one ratio)

- Up to 9 programs for adjustable pre-heat time (up to 99 seconds) & ram speed (18 speed settings)

- Safety over-pressure sensor and slip clutch for ram stop

- Emergency stop button
